Floor Stand 43" 230W 1.8Ghz Lcd Digital Signage Totem

Ask Lasest Price
Brand Name :	Topview
Model Number :	TD-6578
Certification :	CE, C-TICK, FCC, RoHS
Price :	negotiable
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	3000pcs per month
Delivery Time :	10-15 days after payment

Add to Cart

Product Details
Company Profile

Floor Stand 43" 230W 1.8Ghz Lcd Digital Signage Totem

Floor stand landscape 43"kiosk lcd totem digital signage display adverting screen

Description:

We receive any product size custom services.
Ultra HD display, efficient energy saving.
Double sides display, get refined internally and externally.
Hanging installation, space saving.
Super flat enclosure, thin and light.

Main Features:

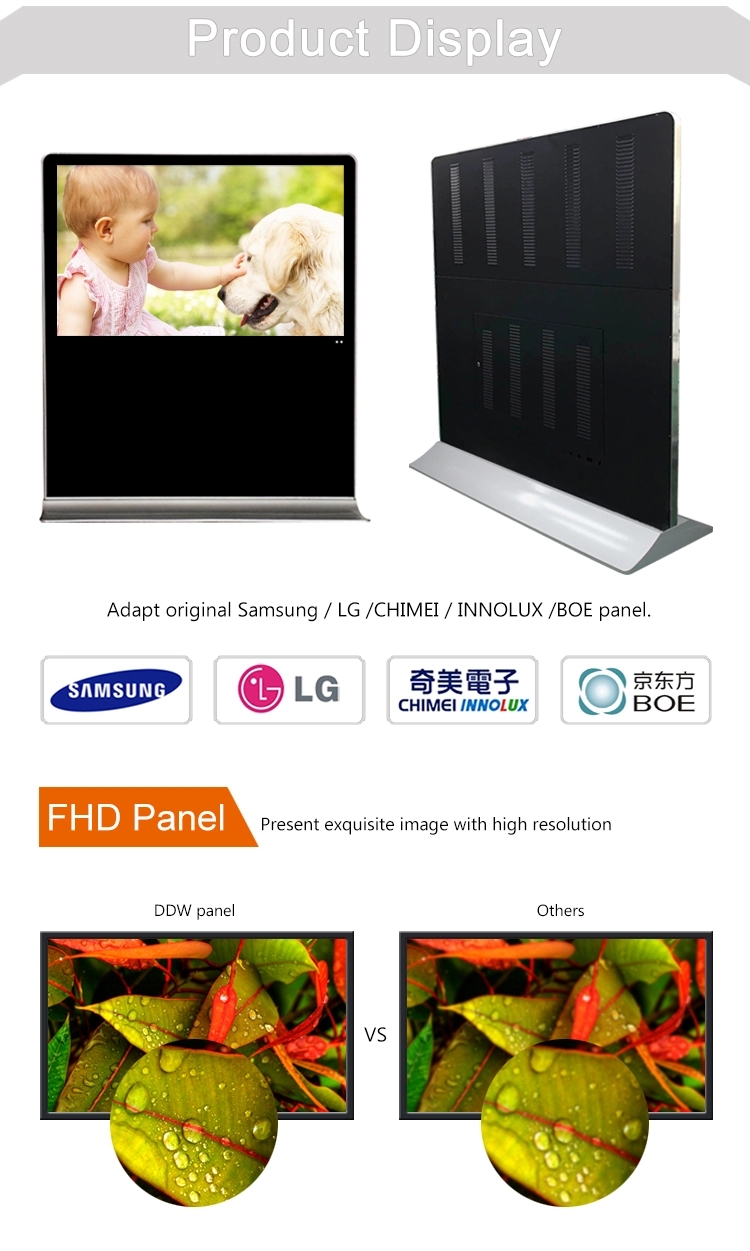

Original LG brand full new A+ grade 1920*1080P HD display
IR touch screen version and non-touch screen version for option
Stand-alone version/Windows/Android system version for option
A powerful Octa-core media player enables photo & video playback, while a 8GB flash of onboard memory provides ample storage for files and multimedia content
An efficient, user-friendly scheduling interface is available via the on-screen display (OSD); setup features include time and date scheduling, ensuring that messaging, images, and videos run smoothly and on time
Remote Ads publish
Dual Integrated Speakers
Offer Digital signage management software support

pecifications
Model No.	TPV-AD6563
Panel size	10"-98"TFT-LCD
Display area(mm)/mode	523(W)×930(H) 9:16
Maximum resolution	1920*1080
Display color	16.7M
Pixel Pitch(mm)	0.4845(H)×0.4845(V)
Brightness (nits)	500cd/m2
Contrast	2000:1
Visual angle	178°/178°
Response time	5ms
Life(hrs)	>60,000(hrs)
Touch Panel
Specification	Infrared Touch/Capacitive Touch
positioning accuracy	±2mm
Touch Media	Finger/touch pen opaque objects
Transmittance	≥92%
Glass Hardness	7H
Click Mode	2/4/6/8/10 points/multipoint(optional)
Response Time	≤5ms
ClickLife Time	>=60M times
Android
Andriod system	Google Android 5.1 support multi-language with wifi moulde
Storage	2G/4G/8G DDR3
CPU	1.8 Ghz/quad-core RK3288
Flash	8GB/16GB/32GB
Computer
Motherboard	H61/H81
CPU	I3/I5/I7
Memory	DDR3 1333MHZ 4GB/8GB
Hardware	SATA II320GB/500GB
Keyboard and Mouse(Optional)	wireless waterproof keyboard and mouse set
Interface	USB4,VGA1,DVI1,HD1,RJ451,Audio1,MIC*1
Software environment	Windows XP/ Windows 7/ Windows 10 /Linux
Video
Color system	PAL/NTSC/SECAM
OSD display( screen menu display)
Menu language	Chinese/English( Multiple Language Supported)
Power
Power supply	100-240V AC 12V/ DC
Maximum power consumption	230W
Standby power consumption	<3W
Temperature
Working temperature	-20°C~+80°C
Storage temperature	-40°C~+80°C
Working humidity	25%~85%
Storage humidity	20%~90%
Support signal format
Video format	MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI
Audio format	Wave/MP3/WMA/AAC
Image format	JPEG/BMP/TIFF/PNG/GIF
Image resolution	480P/720P/1080P
Appearance
Body dimension(Lx W x H)mm	1000500.1300.2 ((for reference)
Panel color/appearance	White, black, customized
Panel material	Metal case SPCC
Installation	Floor-standing
Quality Standard	ISO9001,CCC,CE,FCC,ROHS
Sample leading time	12~15 working days
Bulk order leading time	12~15 working days
Payment term	T/T or Western union
Warranty	1 year

FAQ:
Q: How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.

Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.

Q: what brand of screen are you using?
A:we are using Samsung,LG and AUO screen.

Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.

Q: Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the same time.

Q: What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, WesternUnion,Paypal and MoneyGram
