RS232 10" 11w All In One Digital Signage Rk3288 Android

Ask Lasest Price
Brand Name :	Topview
Model Number :	TD-T3204
Certification :	CE,FCC,ROSH,C-TICK
Price :	Negotiable
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	4000pcs per month
Delivery Time :	10-15days after payment

Add to Cart

Product Details
Company Profile

RS232 10" 11w All In One Digital Signage Rk3288 Android

Wide temperature RS232 WIFI Customized 10inch All in one panel Android industrial Touch PC rk3288 android board table

Product details and features

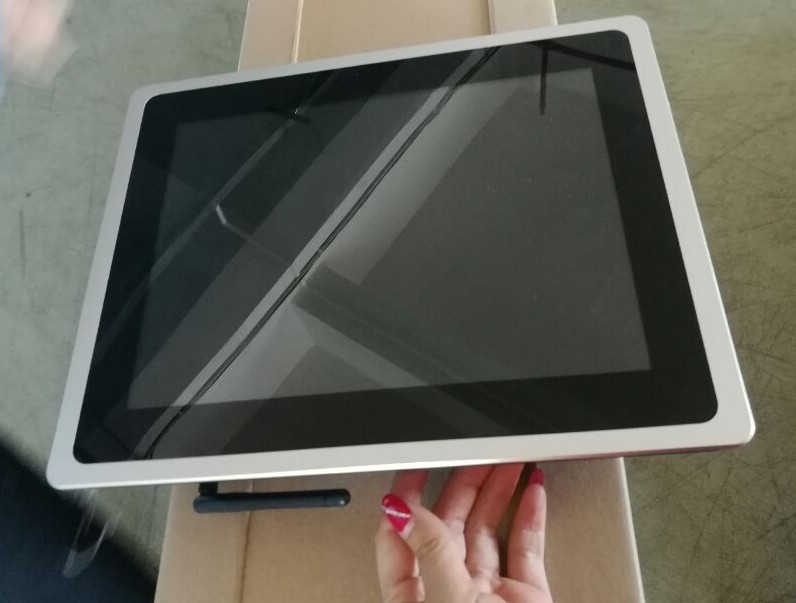

Android 10.1inch Industrial Tablet
Type	Details	Descriptions
Product Form	Dimensions	25.9x17.5x4.35cm
Product Form	Gross Weight	1.7kg
LCD	Screen Size	10.1inch
LCD	Screen Resolution	1280*800 IPS
Touch Panel	Touch Technology	Projected Capacitive 10- point Multitouch
	Touch Connector	USB
	Touch Panel Drivers	Android
	Touch Life (Contacts)	Unlimited
Anti-glare LCD Panel	IP rating	IP65 Front / IP40 Back
	Screen diagonal	10.1/25.65
	Display active screen size	21.70x13.60cm
	Aspect ratio	16:10
	Physical resolution	1280x800
	Colours displayed	16M
	Brightness	250cd/m2
	Contrast	800:1
	Backlight / Backlight Lifetime	LED / 30,000hours
	Visual Angle horizontal/vertical	170/170
Operation / Mechanical	Operating Temperature	-10 ~ +60 (°C)
	Humidity Range (RH)	10%-90%
	Gross weight	1.7kg
	Housing material	Aluminium Metal

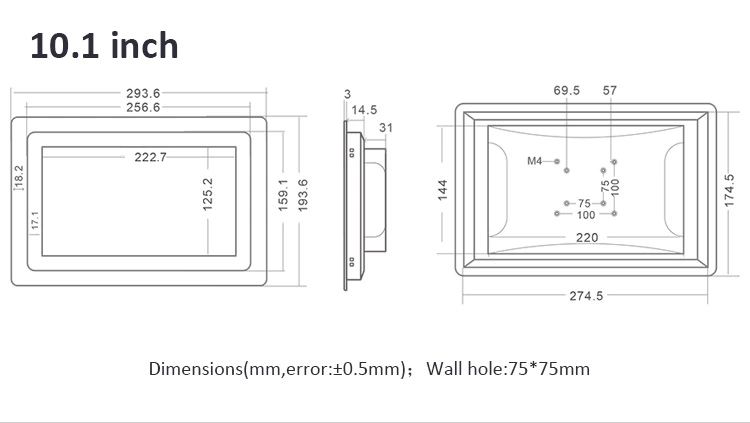

	Housing LxWxH	25.9x17.5x4.35cm
	Mounting	VESA 75*100
PC System	CPU	Rockchips RK3128, Quad Core, 1.3Ghz
	Memory / Storage	1GB / 8GB
	interface port	USB Port 1USB 2.0. 1OTG RS232 1RS232 I/O 1RJ45 GPIO Support 4 chanel GPIO
	Wifi/Bluetooth	Support
	System	Android 5.1
Power	Power Indicator	Green LED
	Power Supply	100-240V ACDC active
	Working Power	12V
	Power Consumption	11w
	Stand-By Consumption	<1W

FAQ

1) Q: How about your product quality?

A: There are three inspections in our company. from materials, product procedure, spection before shipping.

2) Q: What payment methods your company accept?

A: We accept most ofthe payment methods,but mainly accept T/T,L/C,Western Union and MoneyGram.

3) Q: How long is the warranty time for your products?

A: Our officially promised warranty time is one whole year after delivery at best.

4) Q: I haven't done business with you guys before,how can i trust your company?

A:Our company specialize in digital signage for 8 years,which is longer than most of our fellow suppliers what'smore,we've got quite a lot authority certificates,for example,CE,RoHS,FCC , C-TICK,certificate.SGS I hope those above will be persuasive enough.

5) Q: what's the shipment terms and delivery time of your company?

A: Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly ,the shipment time is 3-8 working days after delivery.For Delivery way, for Sample and Bulk order < 100KG, we will kindly suggestExpress and Air freight, when Air freight and Sea shipping for Bulk order >100KG.As for detailed cost, it depends on your final order.

6) Q: Do you give any discount ?

A: I'll surely try my best to help you get those by the best price and good service at the same time.

7) Q: I would like to ask you if it's possible to have my logo on the product.

A: We hope you know that our company Spectrum perfectly support customized logo service. But, we also hope you know that it's an extraservice,so a little bit extra service fee is needed
