AC110V 350nits Interactive Touch Digital Signage For Cinemas Malls

Ask Lasest Price
Brand Name :	Topview
Model Number :	TD-T2153
Certification :	CE,FCC,ROSH,C-TICK
Price :	Negotiable
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	4000pcs per month
Delivery Time :	10-15days after payment

Add to Cart

Product Details
Company Profile

AC110V 350nits Interactive Touch Digital Signage For Cinemas Malls

55 Inch Bevel Floor Standing Interactive Touch LCD Screen Network Digital Signage Display For Cinemas Malls

Features

A.Application fields:public places ,for example,shopping mall,
restaurant,airport, square, commercial buidings,etc.
B.Outer shell is made of extra good quality metal material, which
is painted by powder-spray craft work.
C.Support shockproof and dust proof function.
D.Adopts high transparent tempered glass (4-6 mm ) as protection
layer toprevent lcd/led panel being broken or distorted.
F.Locking system for anti-thieves, prevented the storage devices (
SD/CF cards ) from being stolen.
F.Support IR Remote controller, user can use remote controller to
operate the whole lcd. ( key buttons is optional )
G.Build-in speakers: 2 x 5W. Amplifier / 3.5mm audio jack is
optional.
H.Playing circles automatically when powers on .
I.Allowing memory of breakpoint/AD management system.
J.Automatically generating playing list/Mixed displaying of
videos,images and music.

Product Parameter Details

Screen Size:	55 inch Optional
Display Area:	*1215686MM**
Screen ratio:	16:9
Physical resolution:	1920 x 1080
Brightness:	350cd/m2
Contrast:	3000:1 (Typ.) transmission
Display color:	8 bit/16.7 Million
Viewing angle:	178°,178°
Touch response time:	<5ms
Touch times:	>50 million times

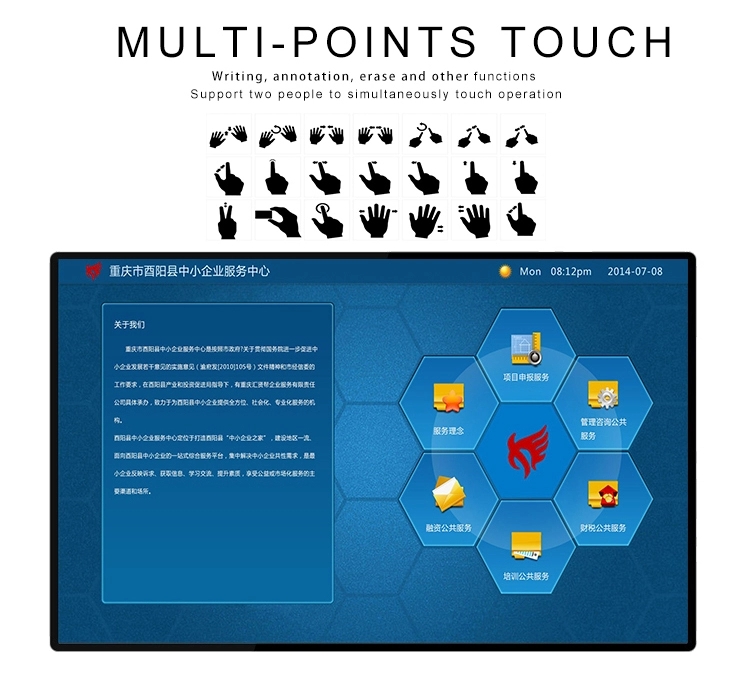

Touch Points:	10 touch points
Operating system:	Windows 7/8/10/Linux/Android optional
working environment:	working temperature:-10℃~60℃;working humidity:20%RH~85%RH,no condensation
Storage environment:	Storage temperature:-20℃~70℃;Storage humidity:20%RH~85%RH,no condensation
Display interface:	VGA/DVI/HDMI optional
Motherboard Installation method:	Integrated
processor:	Intel I3/I5/I7 or RK3288 Optional
RAM:	2G/4G/8G/16G Optional
Hard disk:	SSD32G/64G/128G/256G/512G Optional
Support interface:	VGA1,HDMI1,COM2(external Pin interface),USB2.02, USB3.02,LAN1,AUDIO2(LineOut1/MIC-IN1),DC power1

TOUCH PARAMETER:

Infrared touch screen parameter:

Integration	Built-in without seam, embedded	Infrared resolution	4096*4096
Touch technology	Infrared multi-touch(IRMT) technology, 10 points touch control	Effective touch recognition	≥2.5mm
Writing	Finger, pen or other non-transparent tools	Computer response	Automatic recognition
Response time	5ms	Communication method	Full speed USB2.0
Positioning accuracy	±1.5mm

Capacitive touch screen parameter:

Touch methods	Fingers	Touch points	10 points
Finger touch time	≥35,000,000 times	Support pressure	<10g
Touch force	10-60g	Exterior hardness	≥7H
Storage temperature	-15℃-40℃, <90%RH; 40℃-70℃,<60%RH	Relative humidity	10%-90%RH at 40℃, non-condensable
Response time	<10ms	Light transmittance	>85%
Thickness	1.6mm/Glass thickness can be changed.(1.1mm) + Top ITO Film(0.125mm) + Bottom ITO Film(0.125mm)	Durability	Normally work with 50,000,000 times touch at same point

FAQ

1) Q: How about your product quality?

A: There are three inspections in our company. from materials, product procedure, spection before shipping.

2) Q: What payment methods your company accept?

A: We accept most ofthe payment methods,but mainly accept T/T,L/C,Western Union and MoneyGram.

3) Q: How long is the warranty time for your products?

A: Our officially promised warranty time is one whole year after delivery at best.

4) Q: I haven't done business with you guys before,how can i trust your company?

A:Our company specialize in digital signage for 8 years,which is longer than most of our fellow suppliers what'smore,we've got quite a lot authority certificates,for example,CE,RoHS,FCC , C-TICK,certificate.SGS I hope those above will be persuasive enough.

5) Q: what's the shipment terms and delivery time of your company?

A: Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly ,the shipment time is 3-8 working days after delivery.For Delivery way, for Sample and Bulk order < 100KG, we will kindly suggestExpress and Air freight, when Air freight and Sea shipping for Bulk order >100KG.As for detailed cost, it depends on your final order.

6) Q: Do you give any discount ?

A: I'll surely try my best to help you get those by the best price and good service at the same time.

7) Q: I would like to ask you if it's possible to have my logo on the product.

A: We hope you know that our company Spectrum perfectly support customized logo service. But, we also hope you know that it's an extraservice,so a little bit extra service fee is needed
