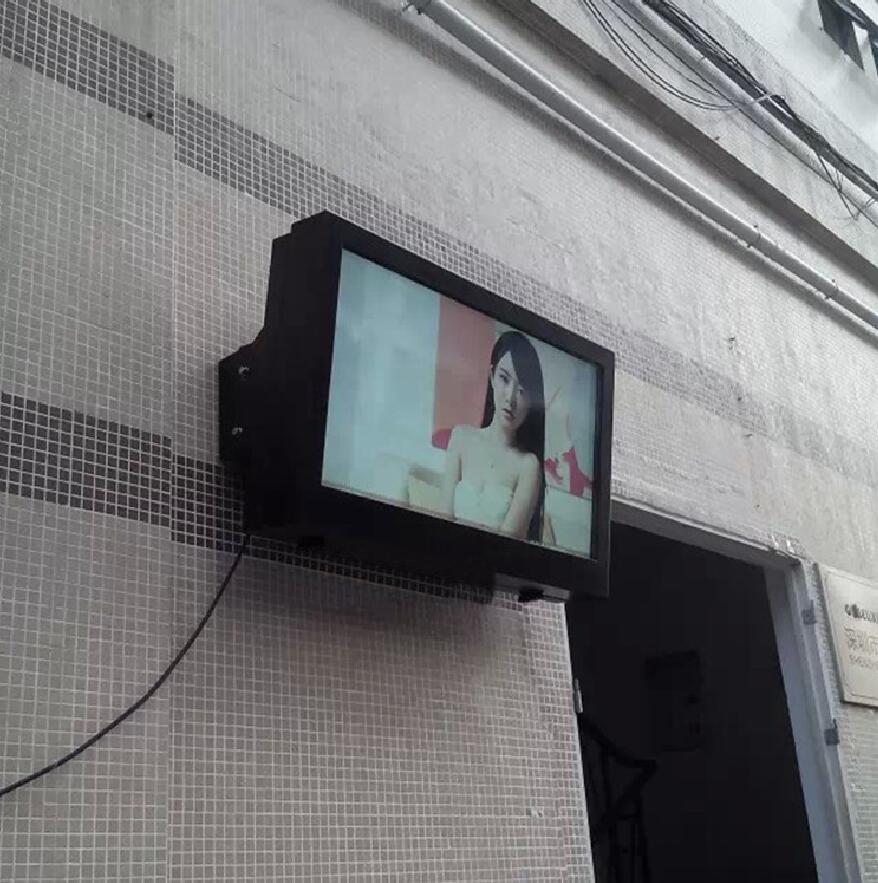

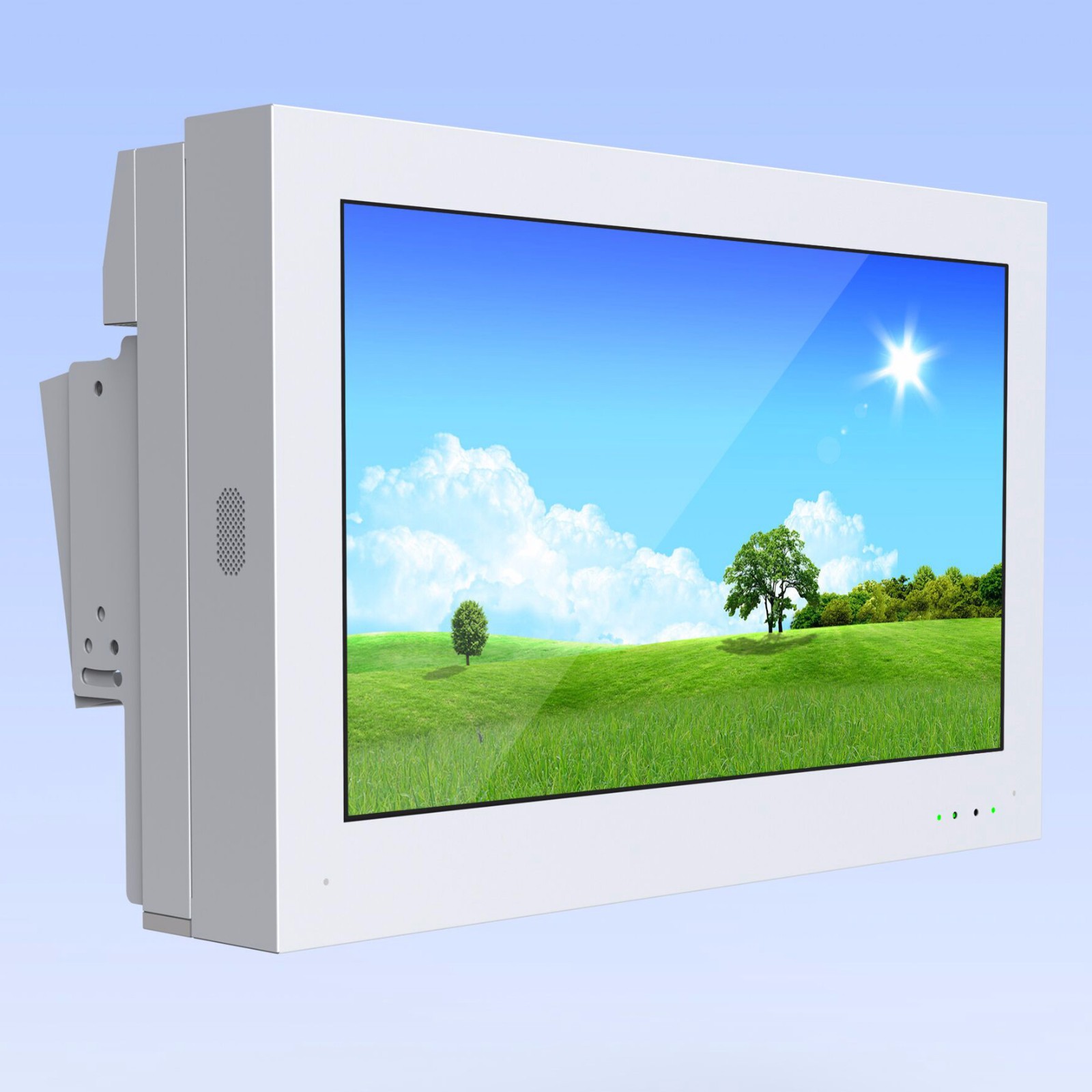

55inch Waterproof IP55 wall mount LCD display outdoor advertising
digital signage kiosk
Advantage of Display Panel:
A. Black level extension adaptive function to enhance image depth
of field.
B. Using outdoor professional high-brightness panel, the video
image is more beautiful and the stereoscopic effect is stronger.
C. LG / SAMSUNG Original IPS/OLED panel A+ grade, without any light
spot or black spot and Full Viewing Angle.
D. High resolution, high contrast, high brightness, greatly
improved picture layering, better performance details
E. Long-term use of panel with automatic elimination of residual
image, UV protection, thermal insulation for sunlight, automatic
light-sensing and green energy saving.
Dimensions
| LCD parameters | Brand | LG |
| Life(hrs) | >60,000(hrs) |
| Brightness Range | 1500-3000cd/m*m |
| Viewing angle | H178°/V178° |
| Power supply | AC100~240V 50 /60 HZ |
| Maximum power consumption | 3600W |
| Standby power consumption | <5W |
| Working temperature inside | 0- 40 ℃ |
| Environment temperature | -40℃ — 55 ℃ (-40 — 122℉) |
| Storage temperature | -40℃ — 50℃ (-40 — 122℉) |

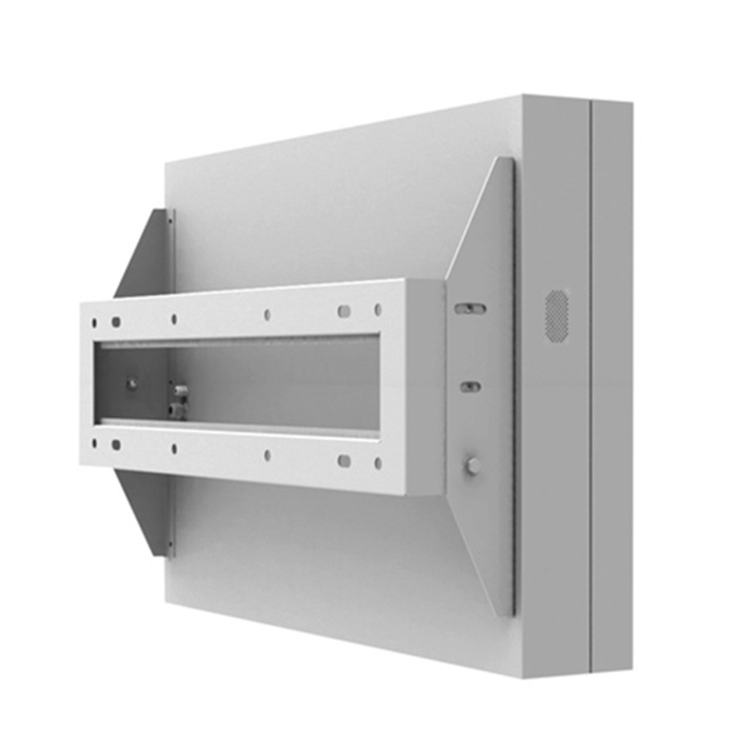

| Installation | floor-standing, wall mounted or customized |
| IP55/65 waterproof case | Using 1.5mm galvanized steel |
| Surface spray powder (anti-corrosion, anti-rust) |
| Outdoor anticorrosive over 7 years |
| Display screen glass | Light transmittance 97% |
| Reflectivity is less than 3% |
| Explosion-proof, waterproof, fireproof |
| UV protection 99% |
| Display screen | Industrial-grade LED, Original LG screen |
| Industrial power supply |
| automatically adjust the brightness |
| Electronic control system | Power supplies , timers , remote control panel , photographic plate
, speaker , battery , leakage protection switches , sockets , etc. |
| Cooling system | Intelligent cooling system |
| LCD display is not blackening |
| Patented cooling system ensures that the LCD screen without
blackening in direct sunlight |
| Product assembly and aging test | IP55/65 waterproof test |
| High and low temperature test |
| Simulated solar radiation test |
| Aging test |
| Packaging | Wooden packaging , sea/air/express(transportation standards |
Why outdoor digital sigange different ?
Outdoor kiosks are often located in public spaces. When the kiosks
have public access, they are left open to factors and conditions
that may result in internal or external damage from physical abuse
or extreme weather. So outdoor digital signage products is quite
different from indoor products in terms of quality, build,
material, technical data, and of course the price too.
Sunlight Readable Is A Must !
- High Brightness: Our outdoor digital signage kiosk Max brightness is from
2000nits-5000 nits all available. Standard Outdoor Kiosk Brightness
Max 2500 nits. which is also the most suitable brightness for most
of customers from all around the world.
- Patent Technology for High Brightness LED Module and Heat
Conduction Design !
Brightness Auto-adjustable with light sensor control
- Anti-Reflective: we adopted 6mm anti-explosive toughened glass with AR (anti-reflective) optical coating, Transmission> 97%, Reflection< 1%, UVblock up to 99%.
Waterproof And Dustproof Is a Must !
- Grade IP55 and IP65 stand for the same waterproof grade(the second
number 5 ): Water projected by a nozzle against the enclosure from
any direction shall have no harmful effect.
Cooling System Is A Must
- Fan Cooling: smart fan cooling system works with temperature sensor to cool
down the kiosk. Fan cooling system is suitable for countries have
mild weather all year round.
AC cooling: AC (air conditioning) cooling is a must for customers from
countries which have extreme weather in Summer or Winter. Or you
have special requirements on dustproof, AC cooling is the best
choice.
Application Area
1. Public Places: Subway, Airport, Bookshop, Exhibition hall,
Gymnasium, Museum, Conference
center, Talent market, Lottery center, etc.
2. Entertainment Places: Movie theatre, Fitness center, Vacation
village, KTV bar, Internet bar,
Beauty salon, etc.
3. Financial Institution: Bank, Security/ Fund/ Insurance company,
etc.l
4. Business Organizations: Supermarket, Shopping malls, chain
store, 4S shop, Restaurant,
Hotel, travel agency,Chemist's shop, etc. bus tv, bus monitor,lcd
display, lcd advertising display
5. Public Service: Hospital, School, Telecom, Post office, etc.
FAQ:
Q:How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
Q:what brand of screen are you using?
A:we are using Samsung,LG and AUO screen.
Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best
structural Engineer,we hope to provide you with best screen and
shape,so OEM is also welcome.
Q:Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the
same time.
Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, WesternUnion,Paypal and MoneyGram
