45W 21.5" Wall Mounted Digital Signage OSD language Lcd Elevator Display

Ask Lasest Price
Brand Name :	Topview
Model Number :	TPV-2204
Certification :	CE,FCC,ROSH,C-Tick
Price :	Negotiable
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	4000 pcs per month
Delivery Time :	10-15days after your payment

Add to Cart

Product Details
Company Profile

45W 21.5" Wall Mounted Digital Signage OSD language Lcd Elevator Display

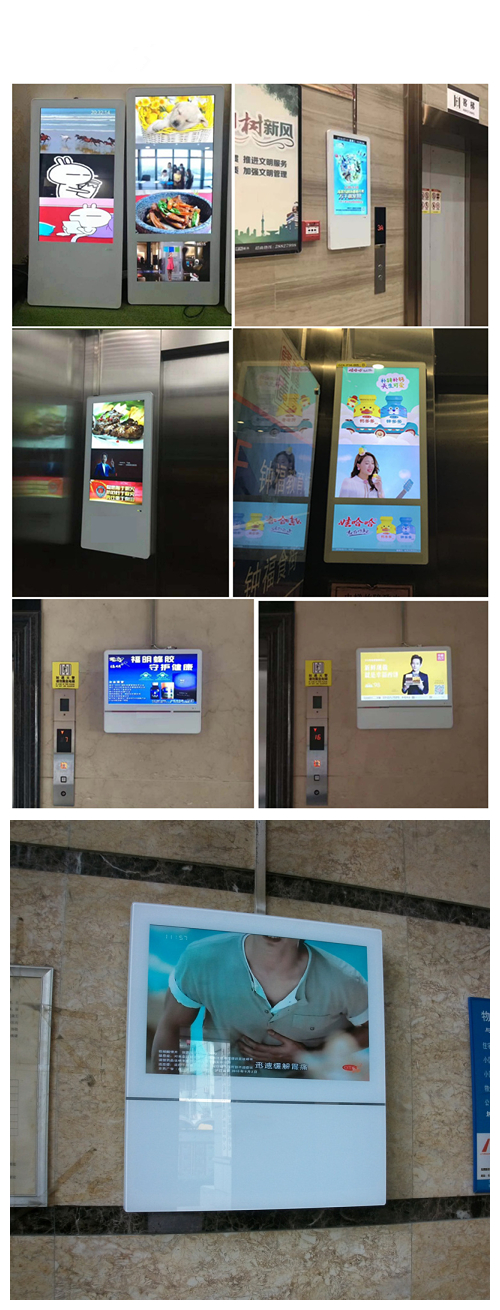

21.5" wall mounted tv display lcd elevator display digital signage player with android system 4G module

Features:

support playing full HD video, up to 1080p.

Support to rotate video program.

Support automatic timing ON/OFF(up to 5 intervals of a day).

Support split screen to show different videos and images, playing different advertisement.

Support to continue displaying when suffered from power failure.

Support and play med on USB memory, plug-and-play, easy to change advertisements.

Support most video and audio formats: MPEG,MPG-1,MPG-2,MPG-4,AVI,MP4,DIV,TS,TRP,MKV,WMV,RM,RMVB etc.

Support various kinds of play mode: single cycle, list cycle and all repeating.

Support picture move-transition, scaling-transition, slide-transition.

Support stereo sound system as well as mono sound.

Support multiple OSD language, Chinese, English, French, Spanish etc.

Support scrolling marquee displaying.

Support perpetual calendar displaying.

Input and output

RJ45 Included(Network version only)

WIFI Module Included(Network version only)

3G,4G(Optional)

USB 1 ( USB2.0 interface)

SD 1 (Compatible MMC/MS)

CF 1(optional)

Speaker 2×5W(9Ω)

Appearance Frame Aluminum profile brushed frame + sheet metal back shell + tempered glass

Product color Black,silver, gold, white (white is optional, customizable)

Working environment Applicable Indoor

Working temperature 0 ~ 50 °C

Storage temperature -20 ~ 60 °C

Working humidity 10%~95% no condensation

Panel	Panel Size		21.5”
	Brightness		250cd/m²(typ.)
	Contrast Ratio		1000:1(typ.)
	Active Display Area		409.8 x 230.4mm
	Resolution		1920 x 1080pixels
System	Operation System		Android5.1
	Chip		RK3288
	Storage	RAM	2G
		SSD	8G
Power Supply	Power Supply		100V~240V,50-60HZ
	Power Consumption (Max.)		≤45W
	Standby Power Consumption		＜0.5W
Environment	Working Temperature		0℃～40℃
	Storage Temperature		-10℃～60℃
	Storage Humidity		10%～90%RH Non-Condensing
	Working Humidity		20%～85%RH Non-Condensing
	Working Hours		18 Hours
Interface	USB-OTG		1
	USB2.0		1
	SIM card holder		1
	RJ45		1
Structure	Net Weight		TBD
	Gross Weight		TBD
	Outline Dimension (W x H x D)		281 x 585 x 25.2mm
	Package Size (W x H x D)		745 x 110 x 350 mm
	Shell Material		Metal Shell
	Color		Silver Aluminum Alloy Frame, Black Back Shell
Language	OSD		English, Chinese(Multi-Language)

FAQ:
Q:How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
Q:what brand of screen are you using?
A:we are using Samsung,LG and AUO screen.
Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
Q:Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the same time.
Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, WesternUnion,Paypal and MoneyGram
