55inch Self Emission transparent oled display module advertising
window transparent oled touch screen
Features
The LW550JUL is a color active matrix Organic Light Emitting Diode
Display(OLED).
The matrix employs Oxide Thin Film Transistor as the active
element.
It is a Top emission display type.
It has a 55inch diagonally measured active display area with WUXGA
resolution:1920*1080
Gray scale or the luminance of the sub-pixel color is determined
with a 10 bit gray scale signal for each dot.
Therefore,it can present a palette of more than 1.07B color
It has been designed fo apply the 10-bit 4 Lane V by One interface.

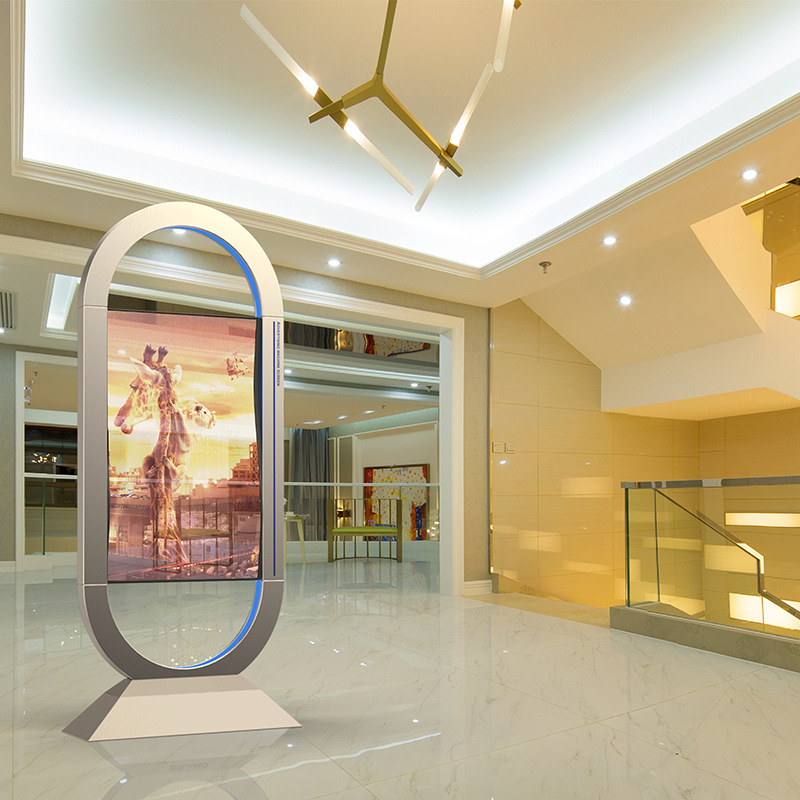

It's great suitable to applied for full kinds of adverstising
applications and public display where high brightness,super wide
viewing angle, high color gamut,high color depth and fast response
time are important.
We can offer the bare panel, the controller kits,as well as the
display with frame and glass covered.
| Active Screen size | 54.46inches (1387.86mm) diagonal |
| Outline Dimension | 1221.5(H)*699.35(V)mm (Typ) |
| Pixel Pitch | 0.630mm*0.630mm |
| Pixel Format | 1920 horiz. by 1080 vert. Pixels, RWBG Quad arrangement |
| Color Depth | 10bit(R), 1.07Billon colors |
| Luminance ,White | 400 / 150 cd/m2 (Center 1point ,Typ.) |
| Color Viewing Angle | R/L 120 (min.), U/D 120 (min.) (Δu’v’ ≤ 0.026) |
| Power Consumption | Total 62.52W (Typ.) [Logic=11.52W, EVDD=51W @ IEC62087] |
| Weight | 3.14kg (Typ.) (W/O C-PCB & Shield) |
| Display Mode | Normally Transparent |
| Transparent Ratio | 38%(typ.) |
| Reflectivity | 14% (typ.) |
| Surface Treatment | Hard coating(2H) |
FAQ:
Q:How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
Q:what brand of screen are you using?
A:we are using Samsung,LG and AUO screen.
Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best
structural Engineer,we hope to provide you with best screen and
shape,so OEM is also welcome.
Q:Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the
same time.
Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, WesternUnion,Paypal and MoneyGram
