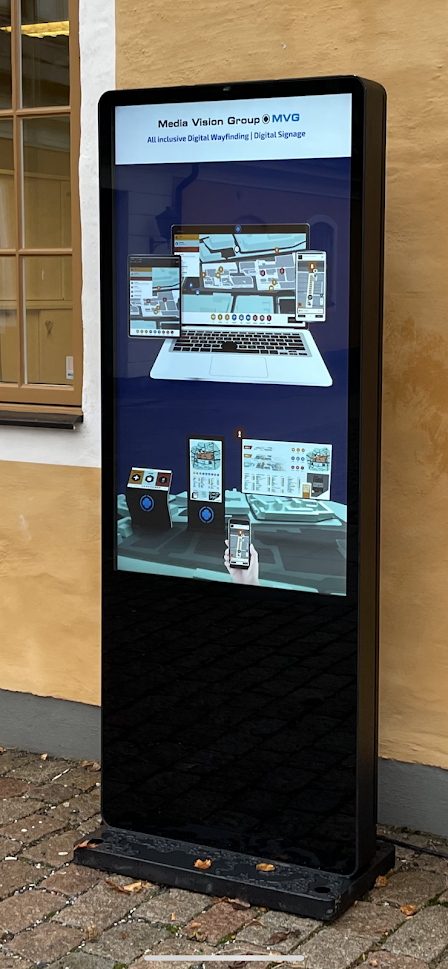

55inch Ip65 Waterproof Outdoor Advertising Monitor Lcd Totem Kiosk
Digital Signage Display Screen With Free CMS
Outdoor
Portrait Displays All in one screen with f...
Specifications:
1. Version:Stand-alone or Network or Touch screen(Andriod or PC)
2. Resolution: 1920*1080
3. Brightness:2000nits (sun-readable)----Standard brightness
4. Waterproof Level:with air-condistioner or with industrial fans
5. Operation temperature:-40 ℃ ~+55 ℃
6. Cooling system solutions: Industrial air-conditioner with
industrial fans/ Industrial fans
7. Case: Customizable
8. Case material: Cold rolling steel
9. Suface glass: 6mm AR laminated glass( vandal-proof, Imitation
ultraviolet≥99.99%,Transmittance≥96%)
10. LCD Panel:Industrial brand LCD panel
11. Network:WIFI,3G optional
12. OEM/ODM
Dimensions
Model | 5556A Android | 5556W Windows |
Screen
| Panel Brand | Samsung & LG Full New 100% A+ Grade Brand Panel |
Panel size | 55" |
Display size | 1209mm(H)×680mm(V) |
Display ratio | 16:9 |
Resolution | 1080*1920 |
Viewing angle | 178°/178°(H/V) |
Color | 16.7M |
Back light | LED |
Brightness | 3500 cd/m² |
Contrast ratio | 3000:1 |
OS System
| Main board:i5-3317U(optional) | CPU:Cortex A17 1.8 GHz |
RAM:4G,SSD:128G(optional) | RAM:2G,EMMC:8G |
Operation | Windows 7(optional,win8,win8.1,win10) | Android 4.2(optional,Android4.4.4/4.2.2/5.1.1/6.0.1/7.1.2) |
Connection to network | RJ45, WIFI (4G,optional) | RJ45 ,WIFI,4G(optional) |
Touch Screen
system
| Touch screen | touch foil, capacitive | touch foil, capacitive |
Touch ways | finger,touch pen | finger,touch pen |
Touch dots | 10dots (optional,20dots,40dots) | 10dots (optional,20dots,40dots) |
Durability | More than 50 million touch | More than 50 million touch |
Power
| Power | 450W | 450W |
Voltage | AC100-240V 50/60HZ | AC100-240V 50/60HZ |
Stability | good | good |
Instructions
| Interface | VGA/HDMI/USB | HDMI/USB/TF card slot |
Working
temperature | -30°C ~ 60°C(with air conditioner)
-10°C ~55°C(with fan cooling)
-30°C ~ 55°C(with fan cooling+heater) | -30°C ~ 60°C(with air conditioner)
-10°C ~55°C(with fan cooling)
-30°C ~ 55°C(with fan cooling+heater) |
Material | Aluminum alloy,tempered glass | Aluminum alloy,tempered glass |
Surface | Spraying,frosted aluminum | Spraying,frosted aluminum |
Size | Undetermined | Undetermined |
Wight | Undetermined | Undetermined |
Body
| Shell | Galvanized steel sheet. Thickness:2mm. Aluminum ,Stainless
steel(optional) |
Color | Black , white , silver or customized colors |
Packing | carton, wooden case, flight case (optional) |
Optional Functions
| Anti-dazzle,Anti-graffiti,Anti-glare,Anti-refection,Anti-UV,Anti-IR,Water-proof,dust-proof,vandal
proof |
3G/4G Capability |
Human sensor,Light sensor,Screen sensor,Humidity sensor,Temperature
sensor,Vibration sensor,Safty monitoring sensor,Ponding
sensor,Smog sensor,Collision sensor,Tilt sensor |
Long Remote control and monitor:
Engineers can achieve 100% monitoring and management in the office
with Marvel OMC software.
Support long-distance online publishing, monitor current broadcast
programs, manage multiple devices etc via Marvel CMS software.
Where to use Marvel outdoor LCD digital signage?
Bus Shelters / Train Station
Advertising display in bus shelters / train station, collect the
gaze eyes and high footfalls near bus/train stops
Street Totem Kiosk/Sights Totem Kiosk
For pedestrians and vehicles on the road, 75inch large-size 4k
advertising promotion and information display suggested. At the
same time can provide daily map and information query
Sunlight Readable Is A Must !
- High Brightness: Our outdoor digital signage kiosk Max brightness is from
2000nits-5000 nits all available. Standard Outdoor Kiosk Brightness
Max 2500 nits. which is also the most suitable brightness for most
of customers from all around the world.
- Patent Technology for High Brightness LED Module and Heat
Conduction Design !
Brightness Auto-adjustable with light sensor control
- Anti-Reflective: we adopted 6mm anti-explosive toughened glass with AR (anti-reflective) optical coating, Transmission> 97%, Reflection< 1%, UVblock up to 99%
Waterproof And Dustproof Is a Must !
- Grade IP55 and IP65 stand for the same waterproof grade(the second
number 5 ): Water projected by a nozzle against the enclosure from
any direction shall have no harmful effect.
Cooling System Is A Must
- Fan Cooling: smart fan cooling system works with temperature sensor to cool
down the kiosk. Fan cooling system is suitable for countries have
mild weather all year round.
AC cooling: AC (air conditioning) cooling is a must for customers from
countries which have extreme weather in Summer or Winter. Or you
have special requirements on dustproof, AC cooling is the best
choice.
Application Area
1. Public Places: Subway, Airport, Bookshop, Exhibition hall,
Gymnasium, Museum, Conference
center, Talent market, Lottery center, etc.
2. Entertainment Places: Movie theatre, Fitness center, Vacation
village, KTV bar, Internet bar,
Beauty salon, etc.
3. Financial Institution: Bank, Security/ Fund/ Insurance company,
etc.l
4. Business Organizations: Supermarket, Shopping malls, chain
store, 4S shop, Restaurant,
Hotel, travel agency,Chemist's shop, etc. bus tv, bus monitor,lcd
display, lcd advertising display
5. Public Service: Hospital, School, Telecom, Post office, etc.
FAQ:
Q:How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
Q:what brand of screen are you using?
A:we are using Samsung,LG and AUO screen.
Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best
structural Engineer,we hope to provide you with best screen and
shape,so OEM is also welcome.
Q:Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the
same time.
Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, WesternUnion,Paypal and MoneyGram
